PU / PIR Sandwich Panels — Wholesale Manufacturer

Insulated metal panels for walls, roofs and cold rooms. Continuous-line PU and PIR foam cores bonded to PPGI steel skins — the same insulation technology inside our garage door panels, in building-scale sheets.

Specifications

Effective width	1000mm
Core options	PU (polyurethane) or PIR (polyisocyanurate) foam
PU panel	Thickness 50 / 75 / 100 / 150mm; core density 40–42 kg/m³; thermal conductivity ≤0.023–0.025 W/(m·K); closed-cell rate ≥95%
PIR panel	Core density 40–45 kg/m³; thermal conductivity 0.019 W/(m·K); closed-cell rate ≥95%; thickness options on request
Steel skins	0.4 / 0.5 / 0.6mm PPGI, color-coated; profile options for wall and roof

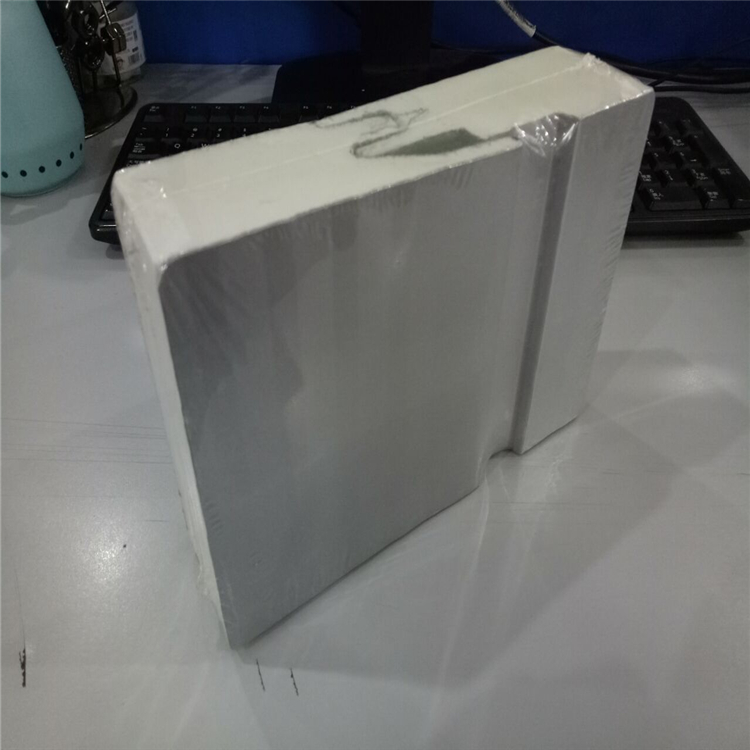

Joint	Tongue-and-groove with concealed or exposed fastening; cam-lock option for cold-room panels
Packing	Film-wrapped bundles on pallets or in containers, seaworthy export packing

Why PU / PIR Cores

• Best insulation per inch among foam cores — thinner walls, same thermal performance
• Closed-cell structure resists moisture, so panels keep their R-value over time
• PIR cores add improved fire performance for code-sensitive projects
• Lightweight sheets install fast — fewer lifts, lower labor cost on site
• Your brand and color program available (OEM)

Applications

Industrial and commercial wall cladding, warehouse and factory roofing, cold rooms and refrigerated warehouses (cam-lock panels on request), prefab and modular buildings. Ask for panel layout drawings with your quote.
